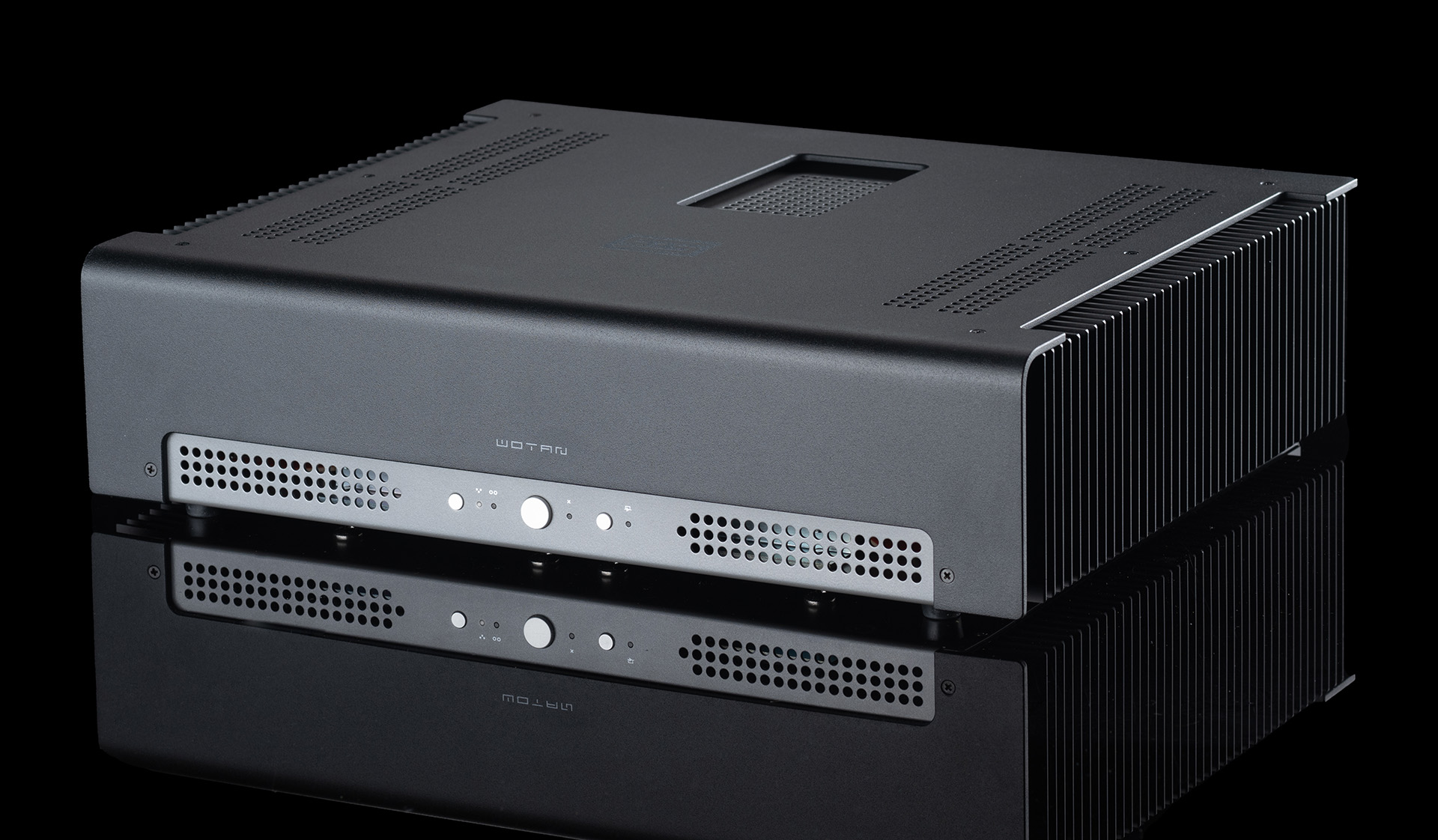

WOTAN

WOTAN

£2,445
VAT already included
In Stock

Bring back big-power, that is! At 200w stereo into 8 ohms and 400w into 4 ohms, the all-new Wotan will drive virtually anything. And, at the same time, its's the most advanced amp Schiit have built, with true dual-mono design, switchable no overall feedback, intelligent temperature management and forkbeard control and integration

Dual Mono. Totally Overbuilt.

Wotan starts with two separate 600VA transformers, for a completely dual mono amplifier design. Add 160,000uf filter capacitiance. 24 150W Toshiba output devices, 7 internal power supply rails per channel, and two fans that only kick in when you need them, and you get an insanely capable amp,  designed for driving difficult speakers.

Nexus Differential Topology, Switchable Feedback.

Like Tyr, Wotan is a differential Nexus amplifier, out unique current-feedback design that is inherently balanced. To this. Schiit have added a new trick: switchable feedback us the front panel button (or forkbeard) to turn overall feedback on or off, for better synergy with more system.

Intelligent Oversight, Silent Fans

Wotan includes internal sensors for current, temperature, DC, and other operational parameters. A 32-bit microprocessor manages and protects the amp in case of any fault, near-bulletproof reliability. Wotan also adds two fans- which normally stay off. when temperatures climb, the fans switch on-slow at first, then building to full speed if necessary. That way you will never hear them over the music.

Forkbeard™:Class A indication remote standby and Health Alerts.

Wotan includes Forkbeard, A multi-product, multi-stack, unified control system. One IOS app gives you mode visibility (Class A or not), power output, health alerts, remote control of Standby mode, and integrates with many other Schiit products.

Designed and Built in USA

By "designed and built in the USA" this what Schiit mean : Schiit design out products in Texas and California, and Schiit make our products right here, too. And it all comes together in their San Antonio, Texas Facility.

5-Year Warranty

Schiit Wotan is covered by a 5-year UK limited warranty that covers parts and labour.

Specs

Power: tons and tons; plenty for pretty much any pair of speakers on the planet

Noise: inaudible at the listening position, if fans are running music drowns them out

Distortion: inaudible, 10-100x lower than any speaker you're using

Heat: amp gets moderately warm at typical volumes, can run very warm when run loud; fans will turn on. Runs cold when in standby.

Size: compact for a 2x200W amplifier but no desk friendly


Other Specs


Power output

Stereo, 8 Ohms: 200W RMS per channel

Stereo, 4 Ohms: 400W RMS per channel


Frequency Response: 20Hz-20KHz, +/-0.03db, 3Hz-500KHz, +/-3dB


THD:<0.02% 20Hz-20KHz, 200W RMS into 8 ohms, feedback on: 0.2% with feedback off

IMD:<0.03%, CCIR, at 200W RMS into 8 ohms, feedback on. 0.3% with feedback off


SNR:> 124db, A-weighted, refenced to full output, feedback on; 120db with feedback off


Damping Factor:


No feedback>30 into 8 ohms, 20-20KHz

With feedback>50 into 8 ohms, 20-20KHz


Gain:20 (26db) with feedback, 40 (32db) with feedback off

Input Sensitivity: AKA Rated Output (Vrms)/ Rated Gain. Or, 40V/20 with feedback or, 40V/40 with no feedback.

Input impedance:47K ohms

Crosstalk:>90db,20-20KHz

Inputs: SE RCA or balanced XLR, front panel switchable

Topology: Nexus differential current feedback, Switchable for no overall feedback

Control an integration: Forkbeard Bluetooth remote with temperature and current reporting, real-time power meters, control of input, feedback and standby

Oversight: microprocessor- control monitoring and management of critical operational points, with relay shut-down for overcurrent, thermal and other faults

Power Supply: two 600VA transformers with complete dual mono architecture, plus boosted, discrete CFP regulated supply to input, voltage gain and driver stages, plus separate, isolated and regulated rails for microprocessor management

Power: Consumption 1200W maximum

Size: 40.64 X 33.02 X 9.84CM

Weight: 25KG
